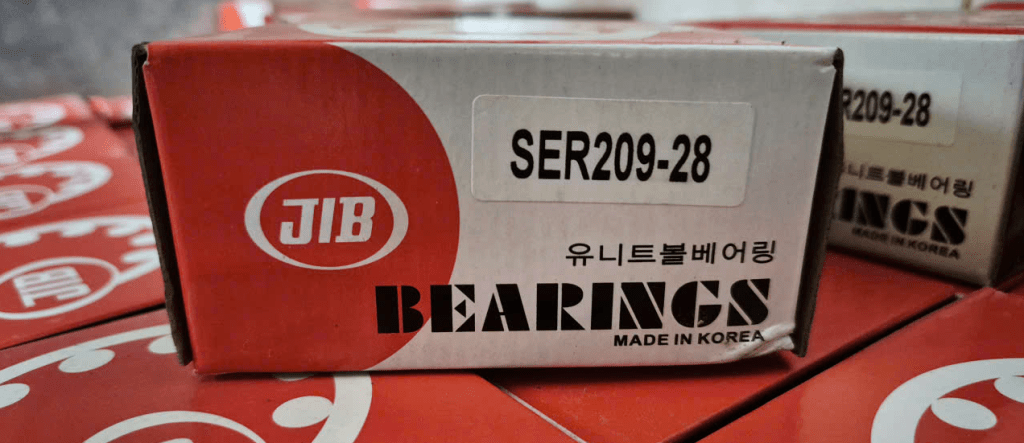

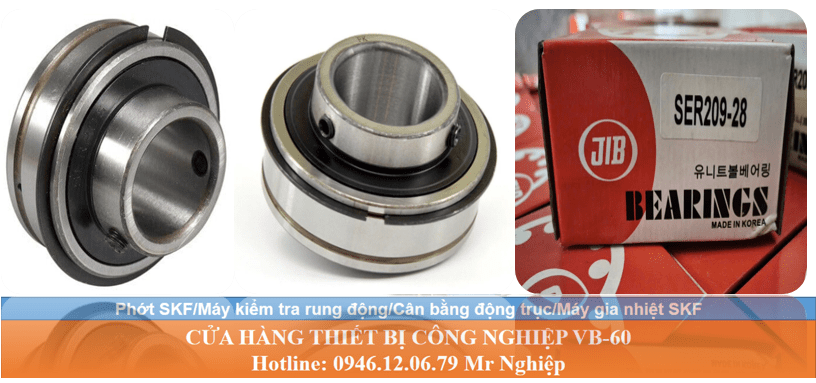

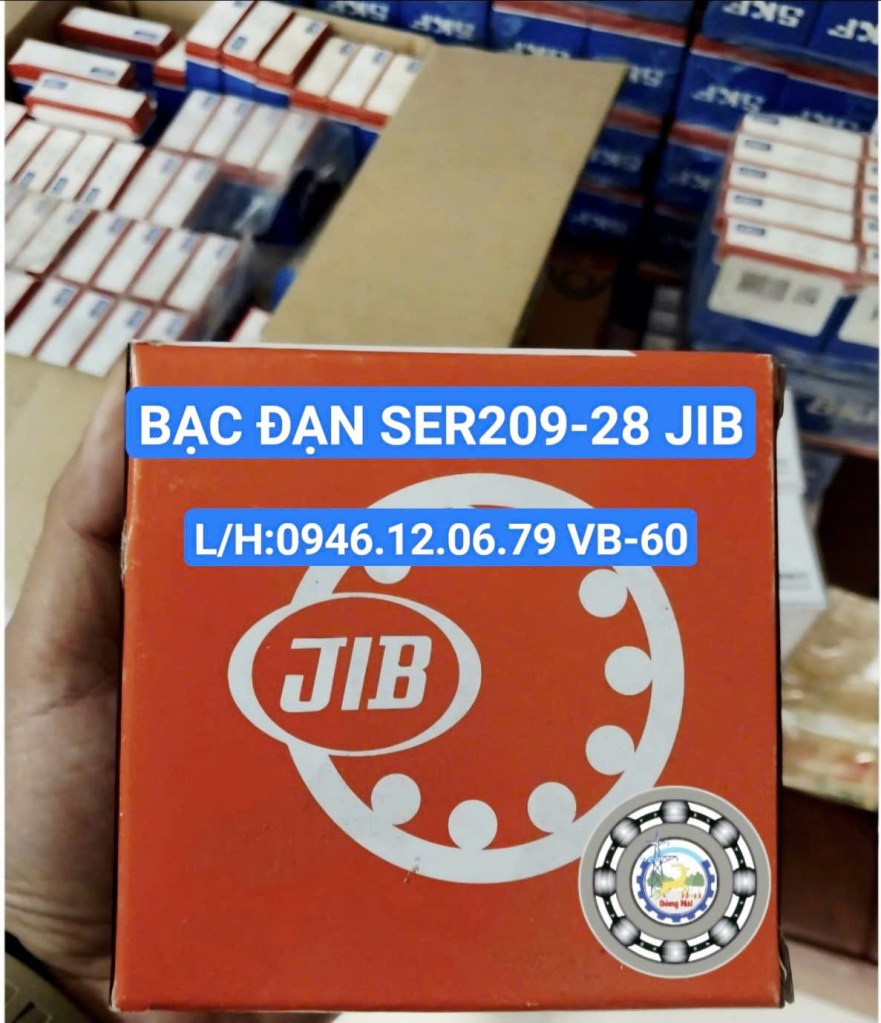

Specifications: SER209-28 | SER Insert Bearing Shaft Dia. 1-3/4″

Width (Độ rộng)	49.20mm
Inner Diameter ( Đường Kính trong)	44.45mm

Outer Diameter ( Đường kính ngoài)	85mm
Weight (Trọng Lượng)	811g

Dimensions SER209-28 | SER Insert Bearing Shaft Dia. 1-3/4″

D	3.3465 in
Bi	1-15/16 in
Be	1-3/32 in
r	0.079 in
n	3/4 in
m	1-3/16 in
G	0.315 in
ds	5/16-24 in
o	1/4 in
W	2.256 in
an	1/8 in
T	0.065 in
Y Max	3.606 in
